- Application:Residential
- Color Temperature(CCT):Warm White
- Working Temperature(℃):-20 - 40
- LED Light Source:SMD2835
- Lamp Luminous Efficiency(lm/w):60
- Product Name:Integrated LED J-Box Or Recessed Can Mounted Led Disk Light Trim
- Input Voltage:AC120V
- Item:6inch 13w 3000k
- Ra:>80
- Power Factor:>0.95
- Keyword:LED Disk Downlight
- Working Lifetime(Hour):30000
- Light Source:LED
- Lamp Body Material:Aluminum alloy
- IP Rating:Ip44
- Certification:ce
- Certification:Energy Star
- Certification:ETL
- Certification:RoHS
- Install Style:Surface Mounted
- Input Voltage(V):AC120v
- Lamp Luminous Flux(lm):780
- Model Number:Wor-DL60YZ-13W
- Brand Name:Worbest
- Place of Origin:CN
6inch J-box installation disk light led downlight recessed with UL CUL listed home lighting
| Product name | LED Disk Downlight | ||
| LED | Samsung 9V | ||
| Input Voltage | 120v | ||
| Size | 4inch/6inch | ||
| Power | 11w/13w | ||
| Luminous flux | 650lm/600lm;750lm/700lm | ||
| Ra | >80;>90 | ||
| Power Factor | >0.95 | ||
| CCT | 2700-5000K | ||
| Dimmable | Yes | ||
| IP rating | wet location | ||
| Material | Aluminum Die-Casting | ||
| Installation | recessed | ||
| Shape | Disk | ||
| Certification | ETL;ES;Title24 | ||
| Lifesapn | 30,000hours | ||
| Warranty | 5 years | ||
The details ofNew arrival DOB driverless 3000K 13Watt 6"LED Disk Downlight dimmable
Features: 1.ETL FCC Energy Star,CECTitle24listed. 2.Universal compatibility, fits in 4", 5", 6"recessed housings or surface mount to 4"&5"J-Box in the ceiling, perfect for shallow ceiling and drop area. 3.10%-100%TRIAC dimming: compatible with most LED dimmers, using an internal driver, no external ballast or starter needed 4.Wet location listed 5.High quality Samsung LED chips provide even and well-balance light rendering without ghosting and glare. | 6.Multiple LED array for uniform illumination 7. 120V AC- no driver needed 8.HighEnergy Efficient with 30,000 hours of life, makes this one of the longest lifespan for LED retrofit on the market. 9) High CRI,CRI>80/CRI>90 two options. 10) 5 years warranty (term and conditions apply) |
Easy hassle-free installation

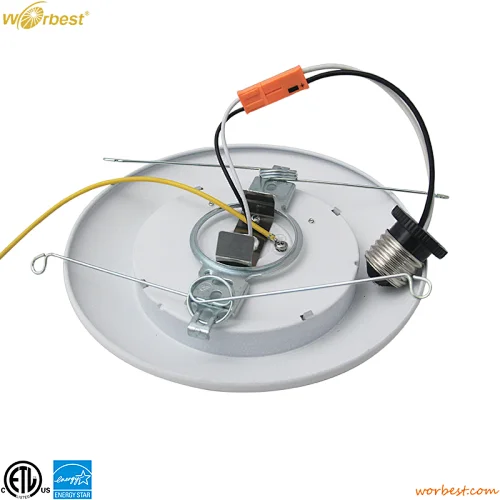

Installation is quick and easy in most recessed housings with torsion springs and friction blades for your option according to the housing you are using. The E26/E27 adapter can fit directly into your existing bulb socket. For surface mount applications, we provide you with an orange adapter with pre-stripped wire which is used to wire into the junction box in the ceiling.
Comparison of Disk LED downlight and normal LED downlight

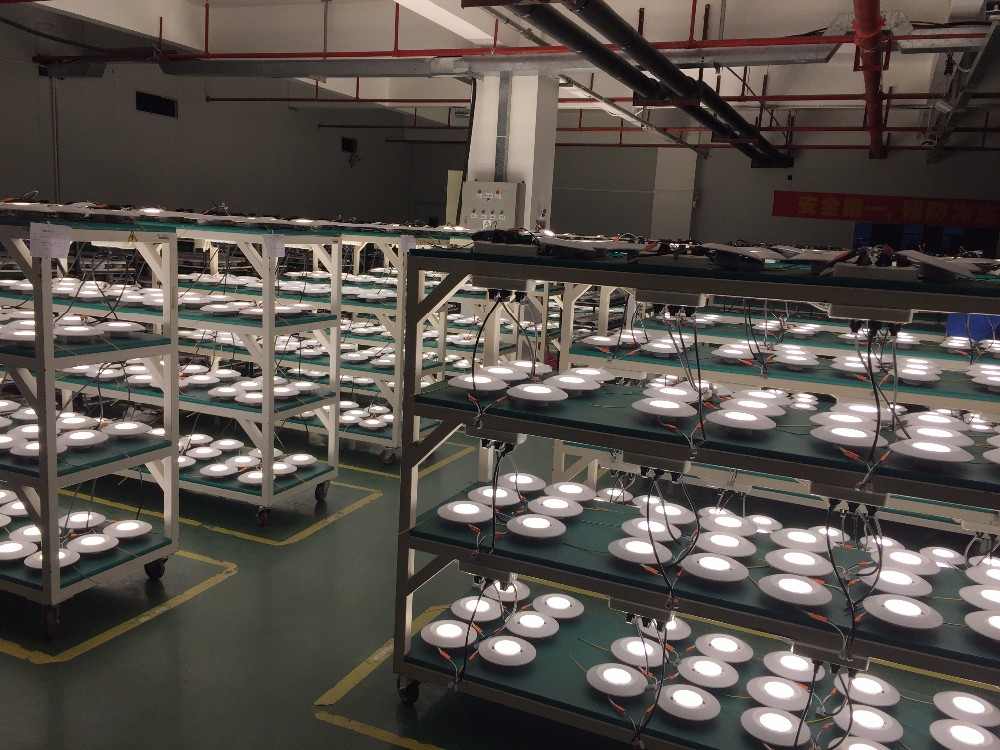

Production Line
Company currently employs more than 300 people, including directly engaged in technology research and development staff of 50 people, two from the Chinese Academy of Sciences, Dr. optoelectronics industry R & D team, standable science research ability . The company's total assets of nearly 200 million yuan, with imports of Japan, the United States, Singapore, Taiwan, various types of production and test equipment, products through 3C , CE, ROHS , PSE , FCC certification. The company has a Chinese invention patents, US patent and other total of 27 patents. |
Q1.Are you manufactory?
A:Yes,we are manufactory.our factory main product are LED downlight,LED CEILING LIGHT,LED PANEL LIGHT,LED BULB,LED DISPLAY, etc.
Q1.Can I have a sample order for LED Disk Downlight?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2.What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for LED Disk Downlight order?
A: Low MOQ, 1pc for sample checking is available
Q4.How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 -5 days to arrive. Airline and sea shipping also optional.
Q5.How to proceed an order for LED Disk Downlight?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.Is it OK to print my logo on LED Disk Downlightproduct?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8:How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
